Suitable for:

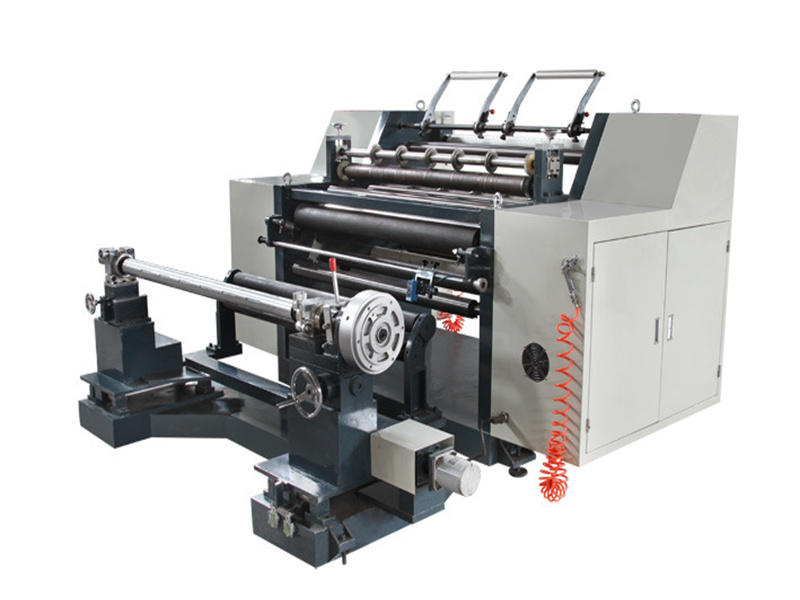

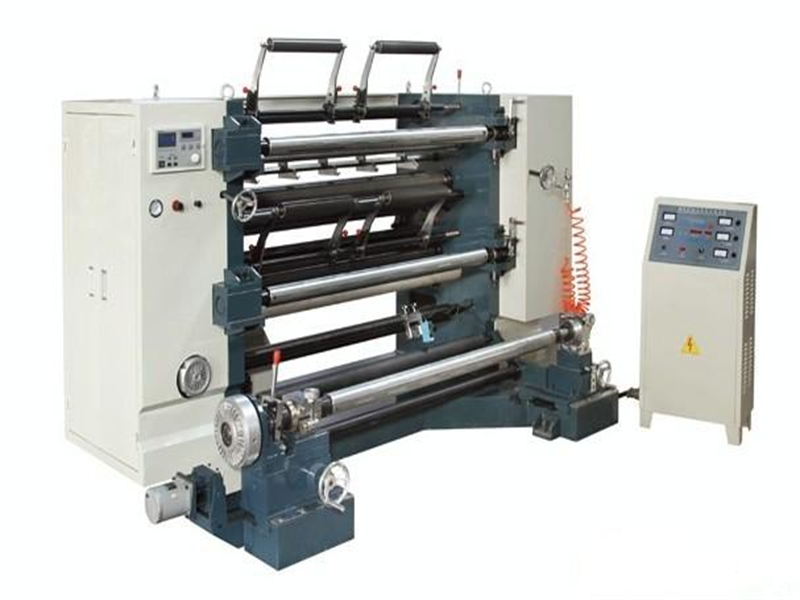

This machine is suitable for slitting and rewinding of various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil, paper, etc. It can be trimmed, slitted, rewinded and cut according to different needs.
1. The main body of the whole machine adopts cast iron and steel structure.
2. The main driving roller adopts seamless steel tube

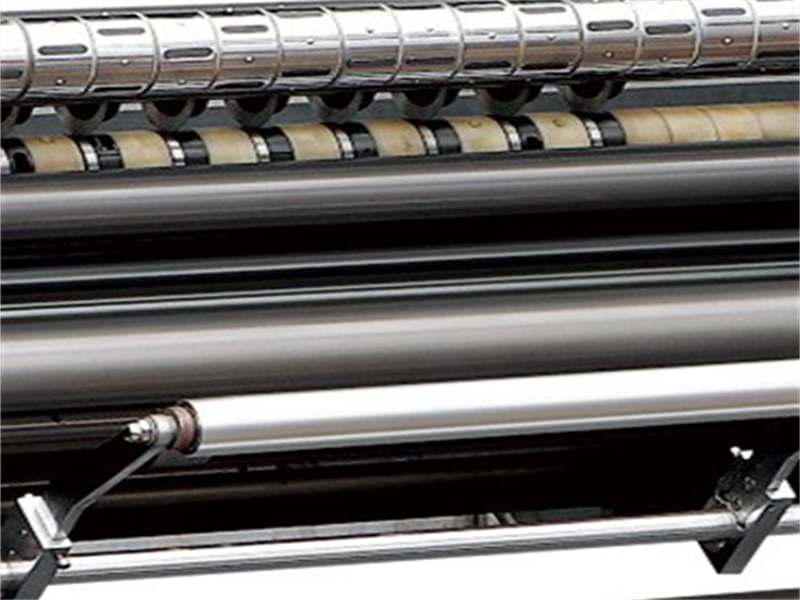

3. The main driving roller adopts rubber roller, the guide roller adopts aluminum roller (after hard chrome plate and special chasing treatment to avoid material scratch) and rubber roller
4. Host and winding shaft drive: use synchronous belt. Simple operation and efficiency.
Suitable for:
This machine is suitable for slitting and rewinding of various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil, paper, etc. It can be trimmed, slitted, rewinded and cut according to different needs.
1. The main body of the whole machine adopts cast iron and steel structure.
2. The main driving roller adopts seamless steel tube
3. The main driving roller adopts rubber roller, the guide roller adopts aluminum roller (after hard chrome plate and special chasing treatment to avoid material scratch) and rubber roller
4. Host and winding shaft drive: use synchronous belt. Simple operation and efficiency.
Technical parameter:
|
Type |
GW-FQ-V800 |
GW-FQ-V1100 |
GW-FQ-V1300 |
|
Max. Web Width |
800mm |
1100mm |
1300mm |
|
Max. Web Diameter |
600mm |
600mm |
600mm |
|
Width of Final Roll |
30-800mm |
30～1000mm |
30～1200mm |
|
Slitting Rewinding Speed |
5～180m/min |
5～180m/min |
5～180m/min |
|
Tolerance of EPC |
＜±0.5mm |
＜±0.5mm |
＜±0.5mm |
|
Total Power |
2.2Kw |
3.5Kw |
3.5Kw |
|
Weight of Machine |
1300kg |
1600 kg |
1900kg |
|
Overall Dimension(LxWxH) |
3000×1200×1530mm |
2500×1200×1530mm |
2700×1200×1530mm |
|
|
|
The main motor is controlled by variable frequency speed regulation. |
 |
 |

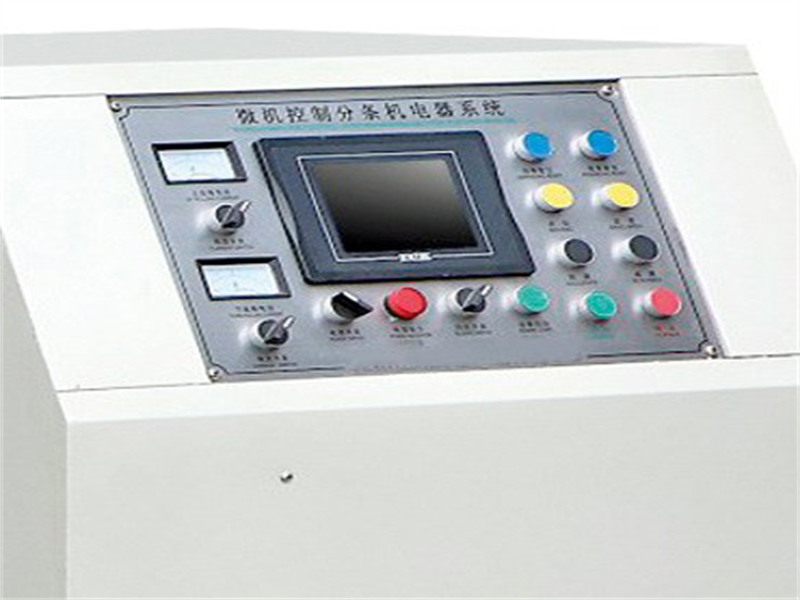

Independent microcomputer control screen, easy to operate. |
|
Automatic edge correction during unwinding, and the tension is controlled by magnetic powder. |
 |
 |

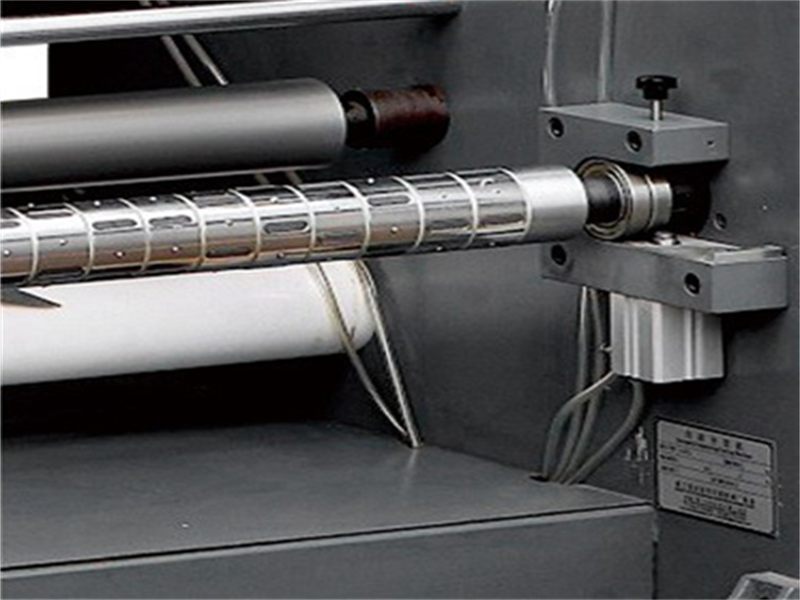

Rewinding adopts air shaft and magnetic powder clutch rewinding control. |
Suitable for: This machine is suitable for slitting and rewinding of various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil, paper, etc. It can be trimmed, slitted, rewinded and cut according to different needs. 1. The main body of the whole machine adopts cast iron and steel structure. 2. The main driving roller adopts seamless steel tube 3. The main driving roller adopts rubber roller, the guide roller adopts aluminum roller (after hard chrome plate and special chasing treatment to avoid material scratch) and rubber roller 4. Host and winding shaft drive: use synchronous belt. Simple operation and efficiency.
