Suitable for:
Plain paper, kraft paper, coated paper, cardboard, non-woven fabric, film, etc.
1. Adopt rewinding and double-receiving mode to rewind, automatically inflate and deflate, integrated servo deviation correction control system,

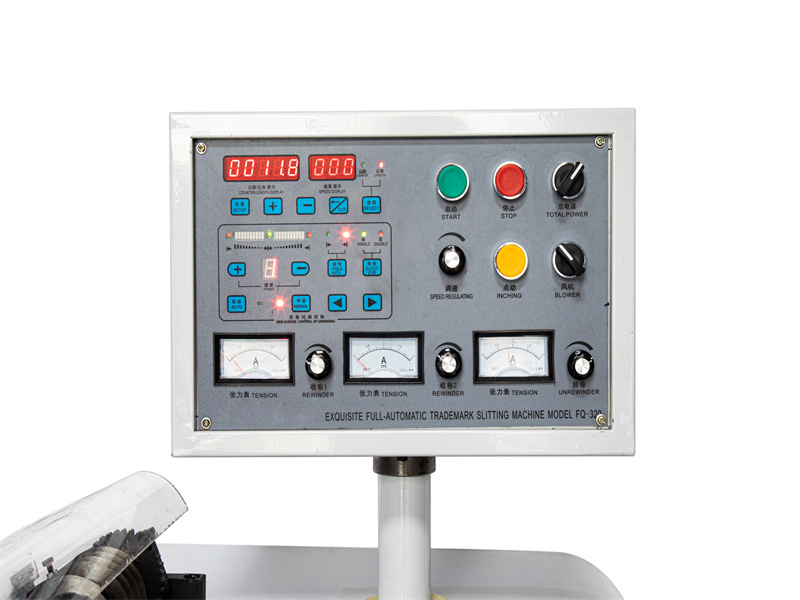

2. The control panel adopts integrated control, replacing the traditional old-fashioned buttons, and the operation is more convenient.
3. Magnetic powder control is adopted for feeding and discharging, which is more convenient for operation.
4. The counter uses the German Sik meter to calculate the number of sheets, which is more accurate.
Suitable for:
Plain paper, kraft paper, coated paper, cardboard, non-woven fabric, film, etc.
1. Adopt rewinding and double-receiving mode to rewind, automatically inflate and deflate, integrated servo deviation correction control system,
2. The control panel adopts integrated control, replacing the traditional old-fashioned buttons, and the operation is more convenient.
3. Magnetic powder control is adopted for feeding and discharging, which is more convenient for operation.
4. The counter uses the German Sik meter to calculate the number of sheets, which is more accurate.

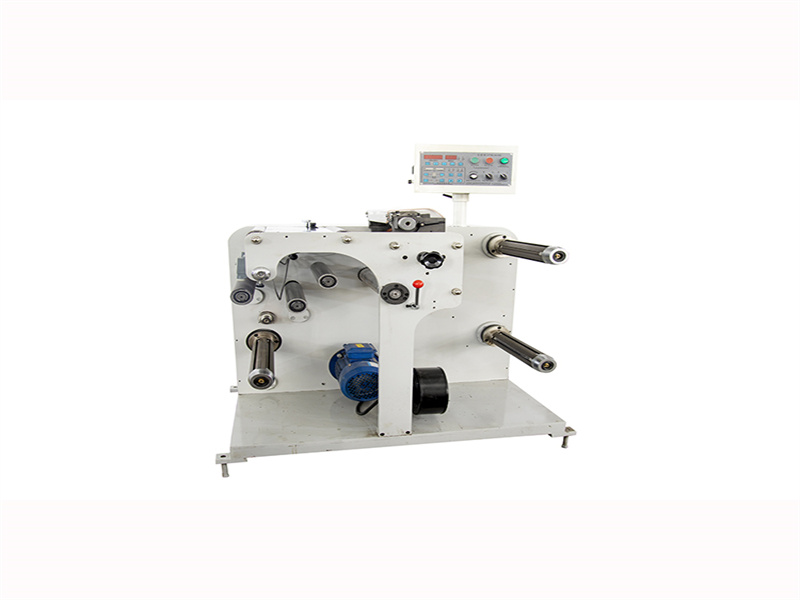

Technical Parameter
|
Model Type |
GW-FQ-320 |
|
Max. Parent Web Width |
320mm |
|
Max. Parent Web Dia.: |
500mm |
|
Max. Rewinding Dia.: |
480mm |
|
Min. Slitting Width: |
Round Type Blade: 30mm |
|
Thickness Range: |
Paper:50-500gsm |
|
Max. Machine Speed: |
80m/min |
|
Unwinding/Rewinding Shaft: |
3” Pneumatic Air Expanding Shaft |
|
Overall Dimensions: |
2000 x 2500 x 1500mm |
|
Weight: |
2000kg |
Illustrate in detail
|

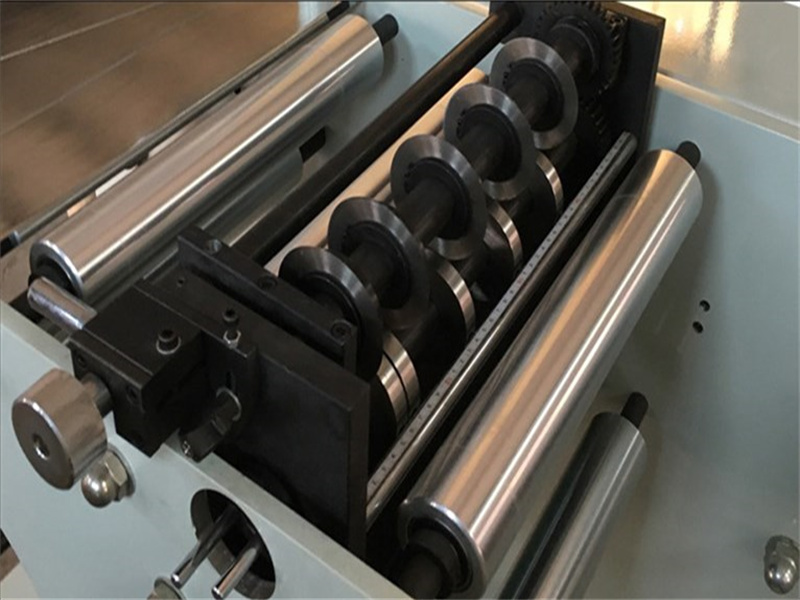

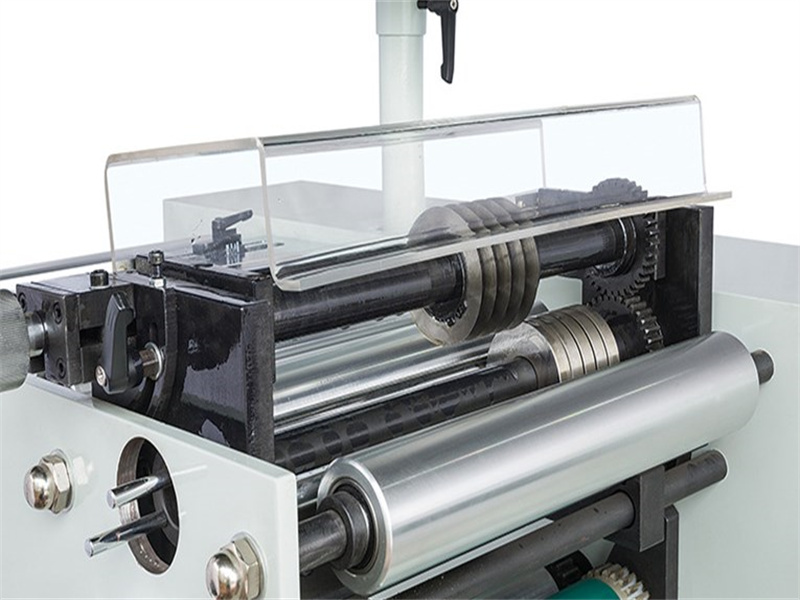

High slitting precision: It can performhalf-break andfull-break slitting,collectingunwinding,laminating, slitting,rewinding, and wastedischarge.It is easy to operateand fast. |
 |
Suitable for: Plain paper, kraft paper, coated paper, cardboard, non-woven fabric, film, etc. 1. Adopt rewinding and double-receiving mode to rewind, automatically inflate and deflate, integrated servo deviation correction control system, 2. The control panel adopts integrated control, replacing the traditional old-fashioned buttons, and the operation is more convenient. 3. Magnetic powder control is adopted for feeding and discharging, which is more convenient for operation. 4. The counter uses the German Sik meter to calculate the number of sheets, which is more accurate.
Suitable for: Plain paper, kraft paper, coated paper, cardboard, non-woven fabric, film, etc. 1. Adopt rewinding and double-receiving mode to rewind, automatically inflate and deflate, integrated servo deviation correction control system, 2. The control panel adopts integrated control, replacing the traditional old-fashioned buttons, and the operation is more convenient. 3. Magnetic powder control is adopted for feeding and discharging, which is more convenient for operation. 4. The counter uses the German Sik meter to calculate the number of sheets, which is more accurate.
